Hand Press Machines
products Hand Press

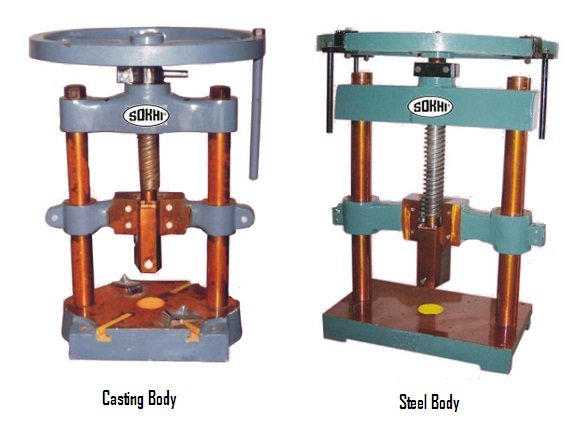

PILLAR PRESS CASTING & STEEL BODY
Size of Press |
Height of Pillers |
Difference Between Piller To Piller |
Screw & Piller Dia |
Dia Of Wheel |
Hole in Ram |
Hole in Bed |
Screw Run Per Revolution |
L x B x H Base inches |
2 |
22" |
220 mm |
1¾" |
18" |
1" |
2¼" |
2" |
15½x9½x2¾ |
3 |
24" |
250 mm |
2" |
20" |
1" |
2½" |
2" |
16¼x10½x3 |
4 |
26" |
280 mm |
2¼" |
22" |
1" |
2¾" |
2" |
18x12x4 |
5 |
32" |
318 mm |
2½" |
26" |
1" |
3" |
3" |
21x12½x4 |
6 |
36" |
360 mm |
2¾" |
28" |
1" |
3½" |
3" |
24x14½x4 |
8 |
40" |
435 mm |
3,1/8" |
32" |
1¼" |
4" |
3" |
28½x17x4½ |
10 |
42" |
465 mm |
3,3/8" |
34" |
1¼" |
4½" |
3" |
31x18½x5½ |
12 |
44" |
550 mm |
4" |
36" |
1¼" |
4½" |
3" |
34x18½x5½ |
14 |
46" |
600 mm |
4¼" |
40" |
1¼" |
5½" |
3" |
36½x20x5½ |
16 |
48" |
700 mm |
4½" |
44" |
1½" |
5½" |
4" |
43x22x6 |
18 |
52" |
800 mm |
5" |
50" |
1¾" |
6" |
4" |
50x25x7 |
20 |
54" |
900 mm |
5½" |
50" |
1¾" |
6" |
4" |
56x28x8 |
